Suited For
- All In-Ceiling Home Theatre
- Stereo / Multi-room Music
- Home Theatre Rear Speakers
- Dolby ATMOS

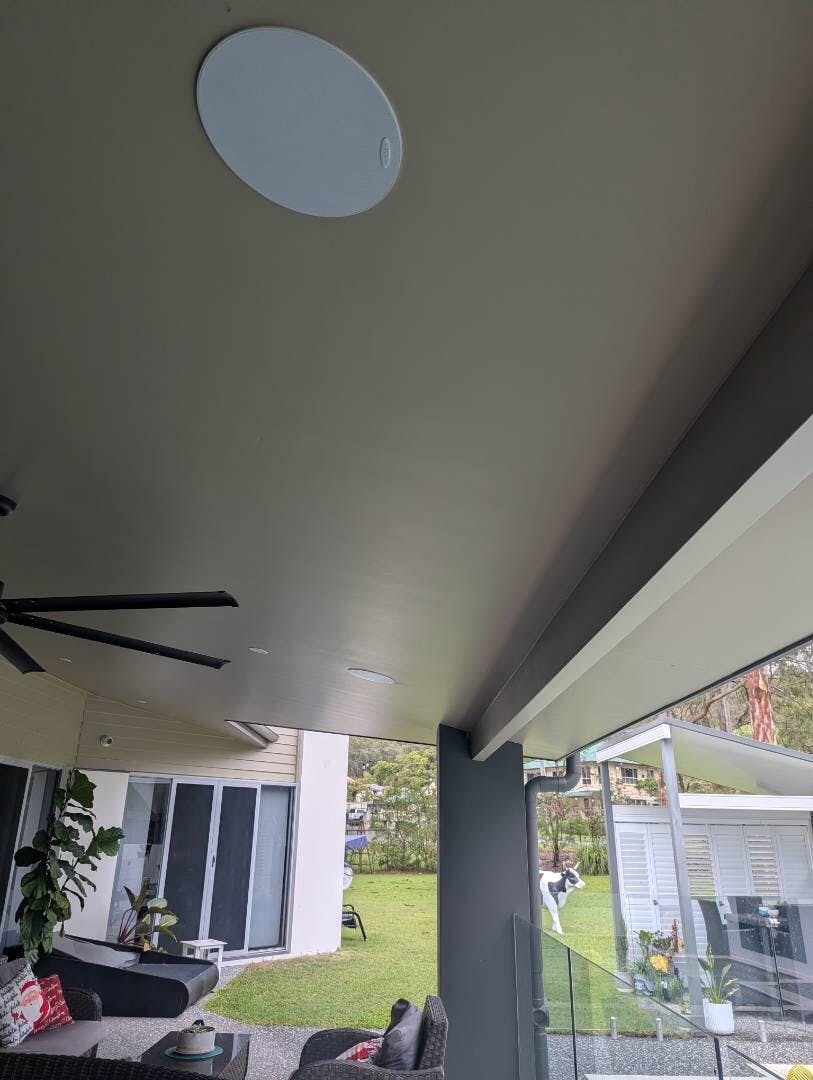

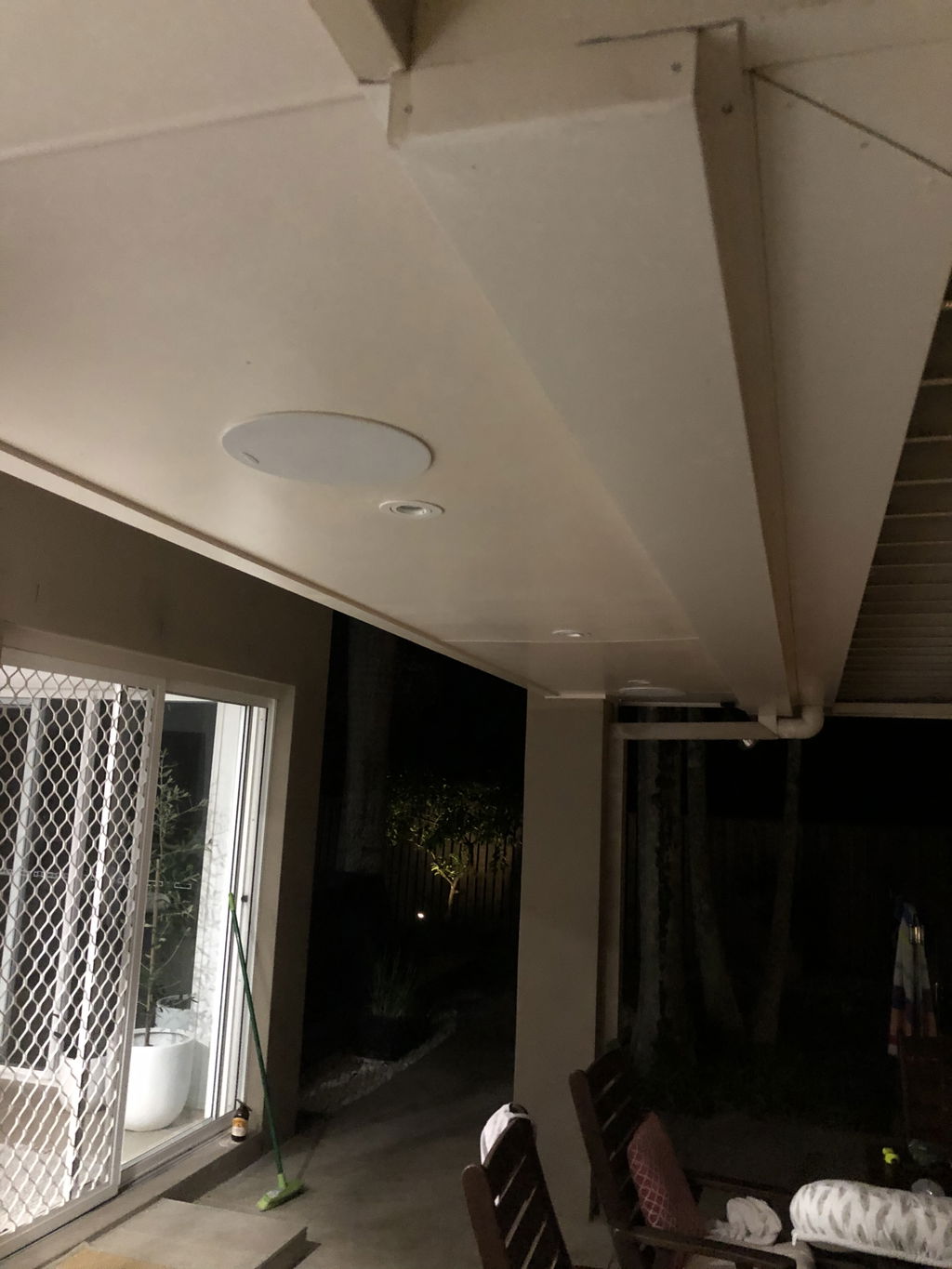

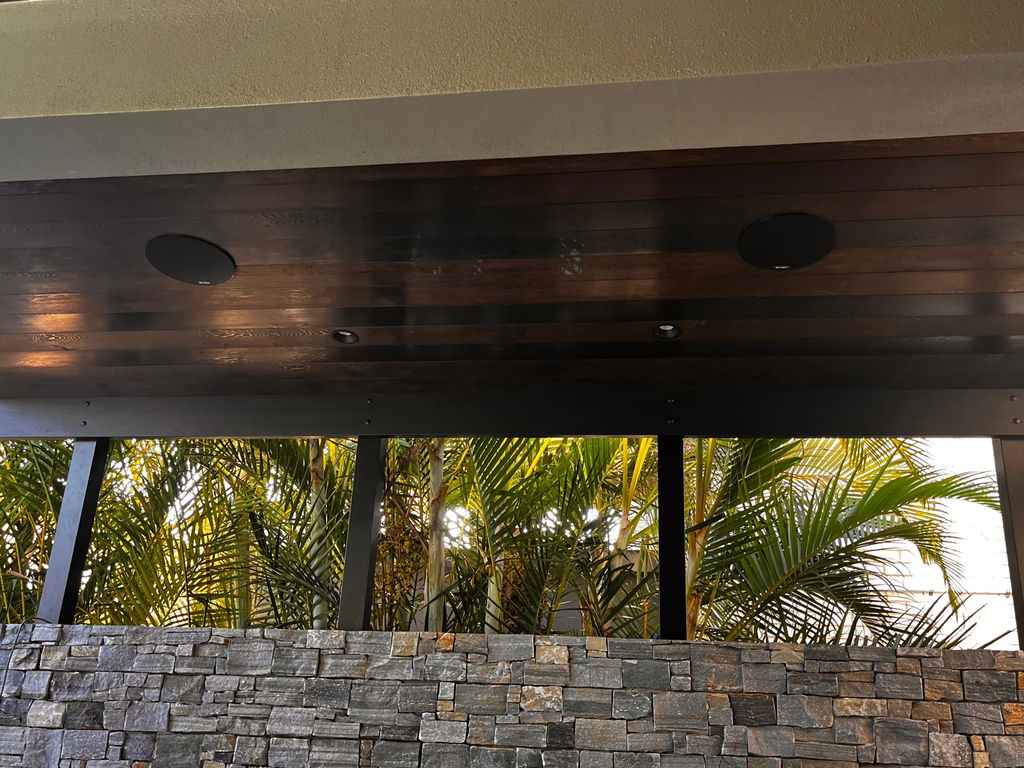

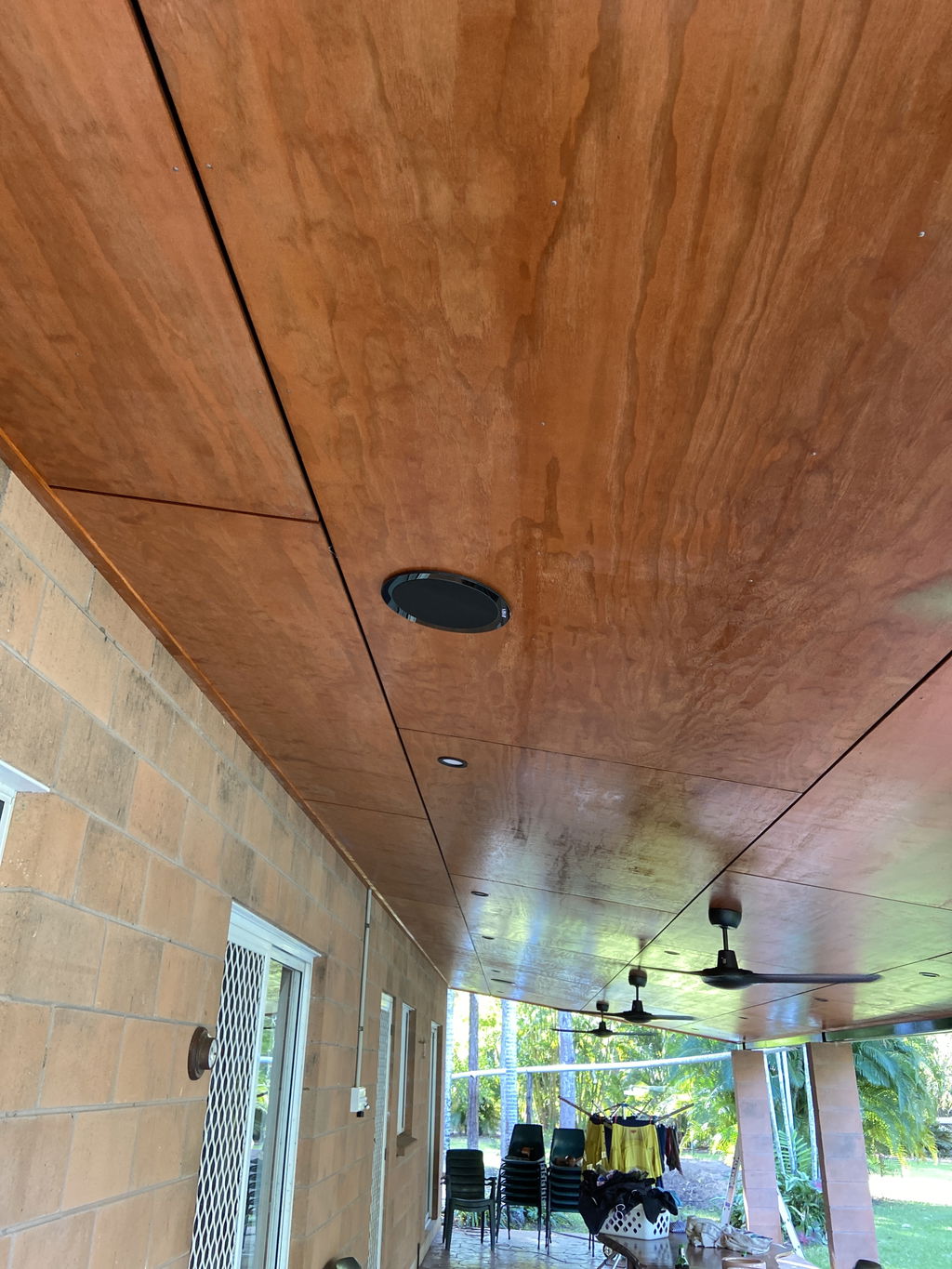

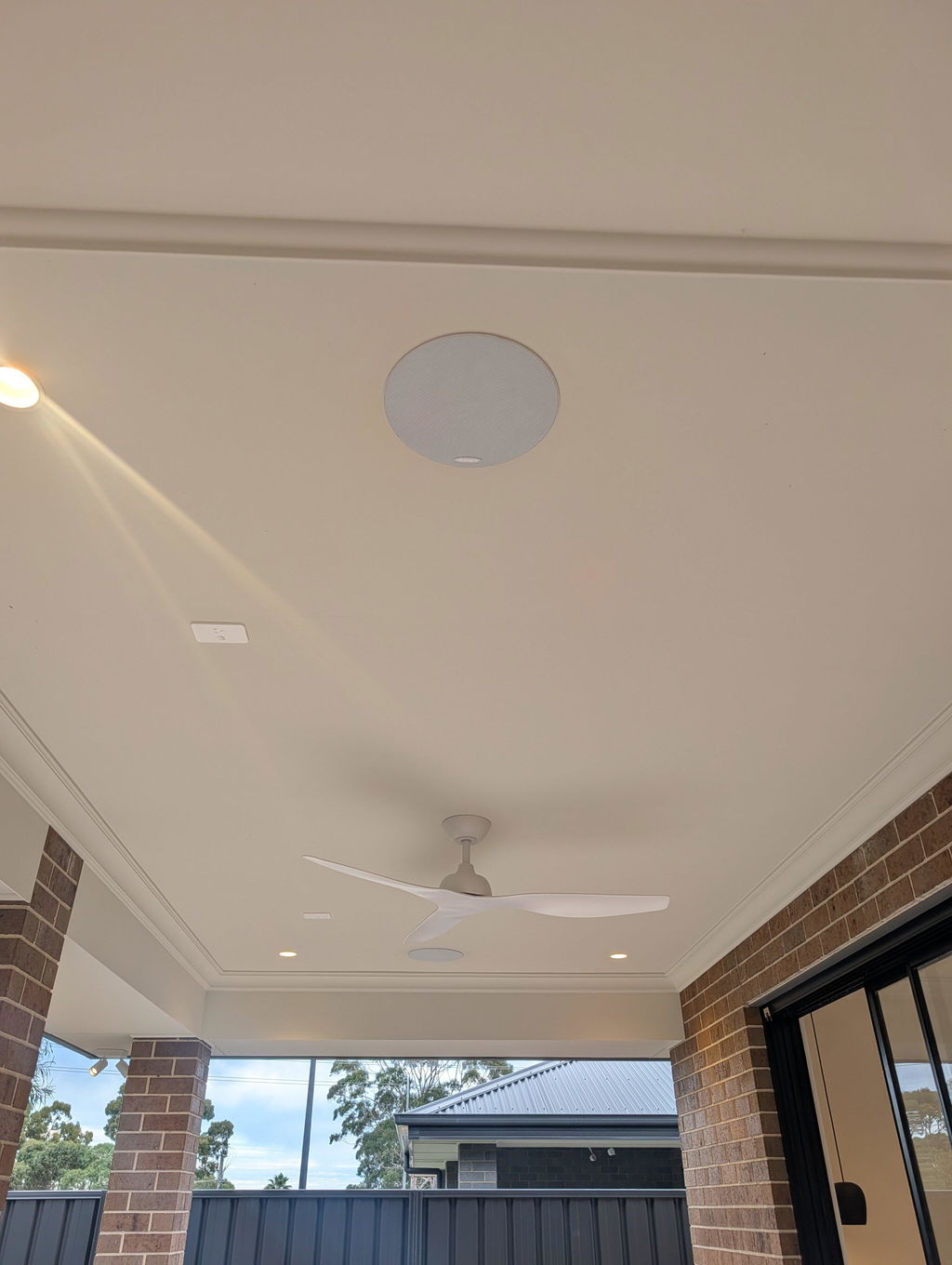

- Alfresco (no Subwoofer needed)
Product Description

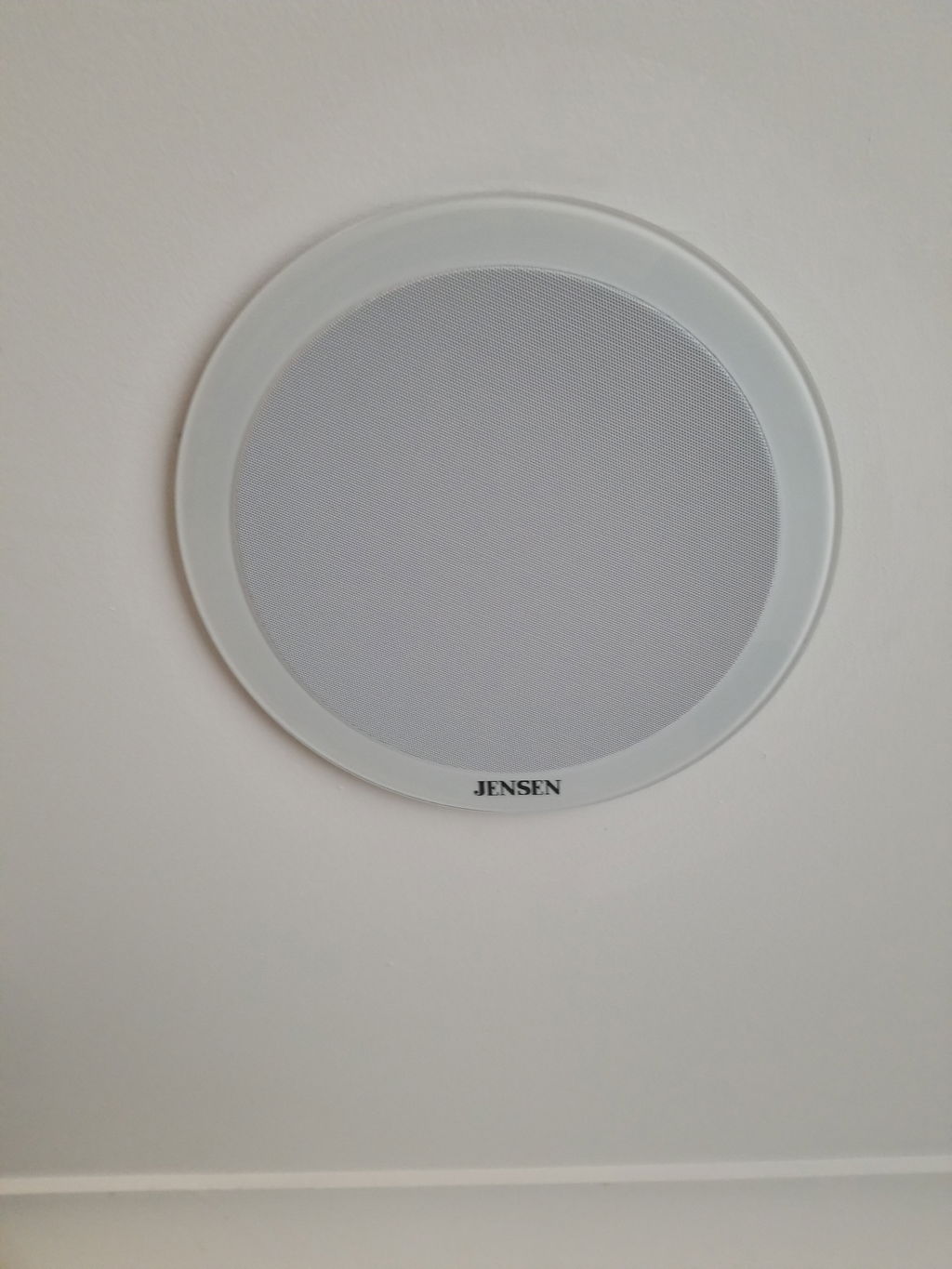

With stunning Glass Grilles, Elite-404 is arguably the best looking In-Ceiling speakers on the planet AND they happen to be superb sounding with high power handling. They require 140mm (min) ceiling cavity and attach to plaster/gyprock by secure fit clamps. Suitable for any modern new home the attractive Black or White glass panels magnetically attach to provide the ultimate high-end appearance. Heavy Duty 8” driver provides so much tight Bass that in fact a Subwoofer is not necessary if using throughout the home or in outdoor or Alfresco areas. 140 Watts RMS power handling, JENSEN’s tweeter circuit protection, heavy duty crossover and gold plated spring wiring clamps all combine to ensure the Elite-404 is the ultimate In-Ceiling Speaker system.
In Ceiling Speaker Features
- Easy In-Ceiling Mounting with Secure Fit Clamps

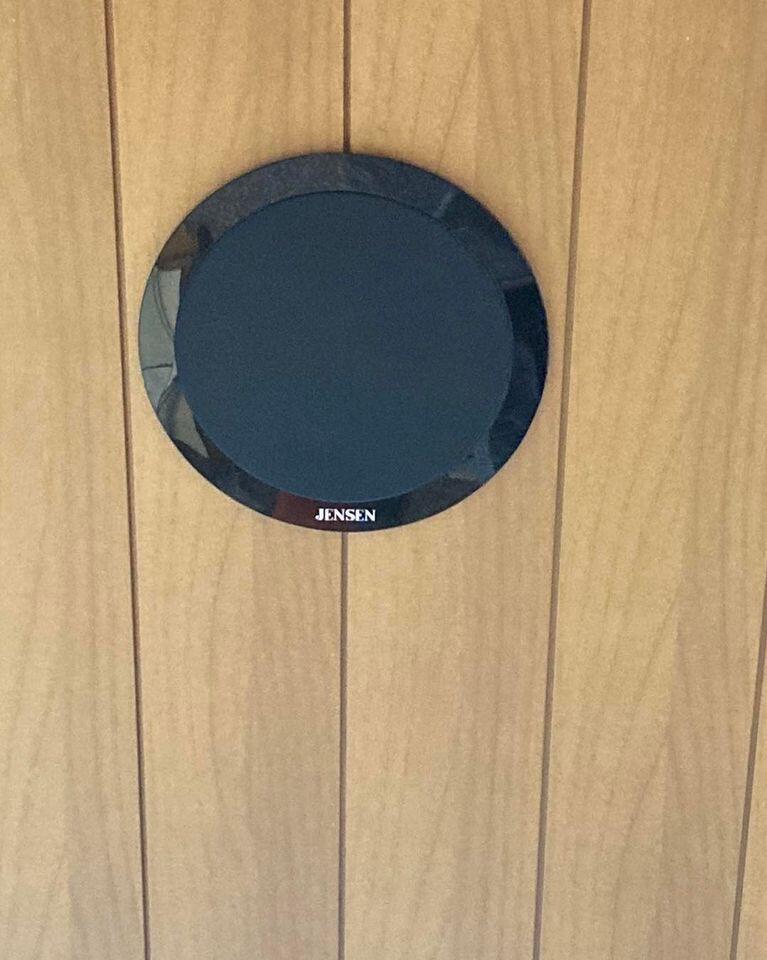

- Elegant Glass face panels in Black or White

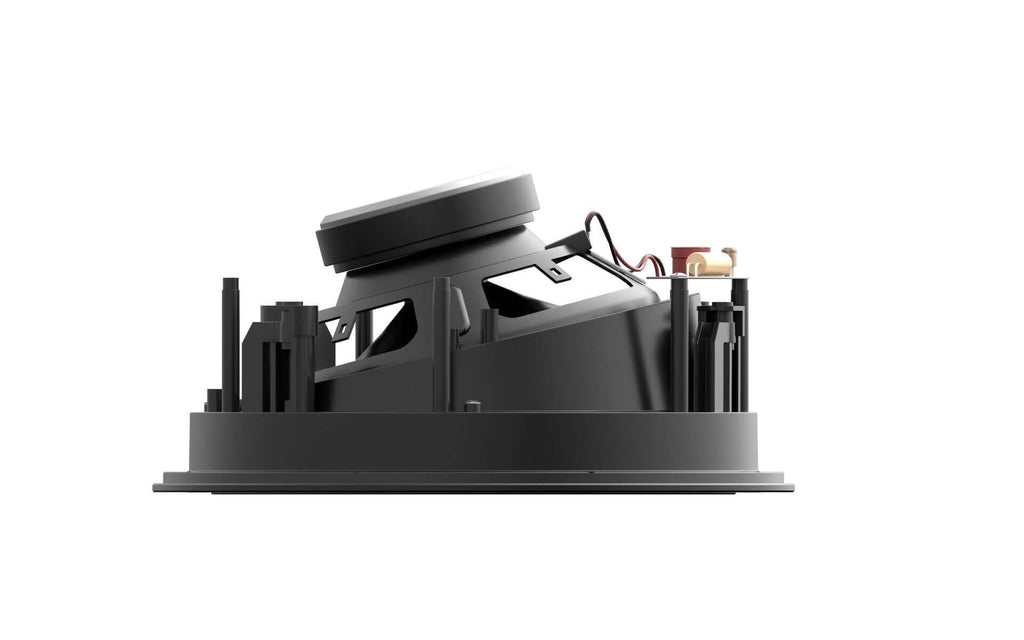

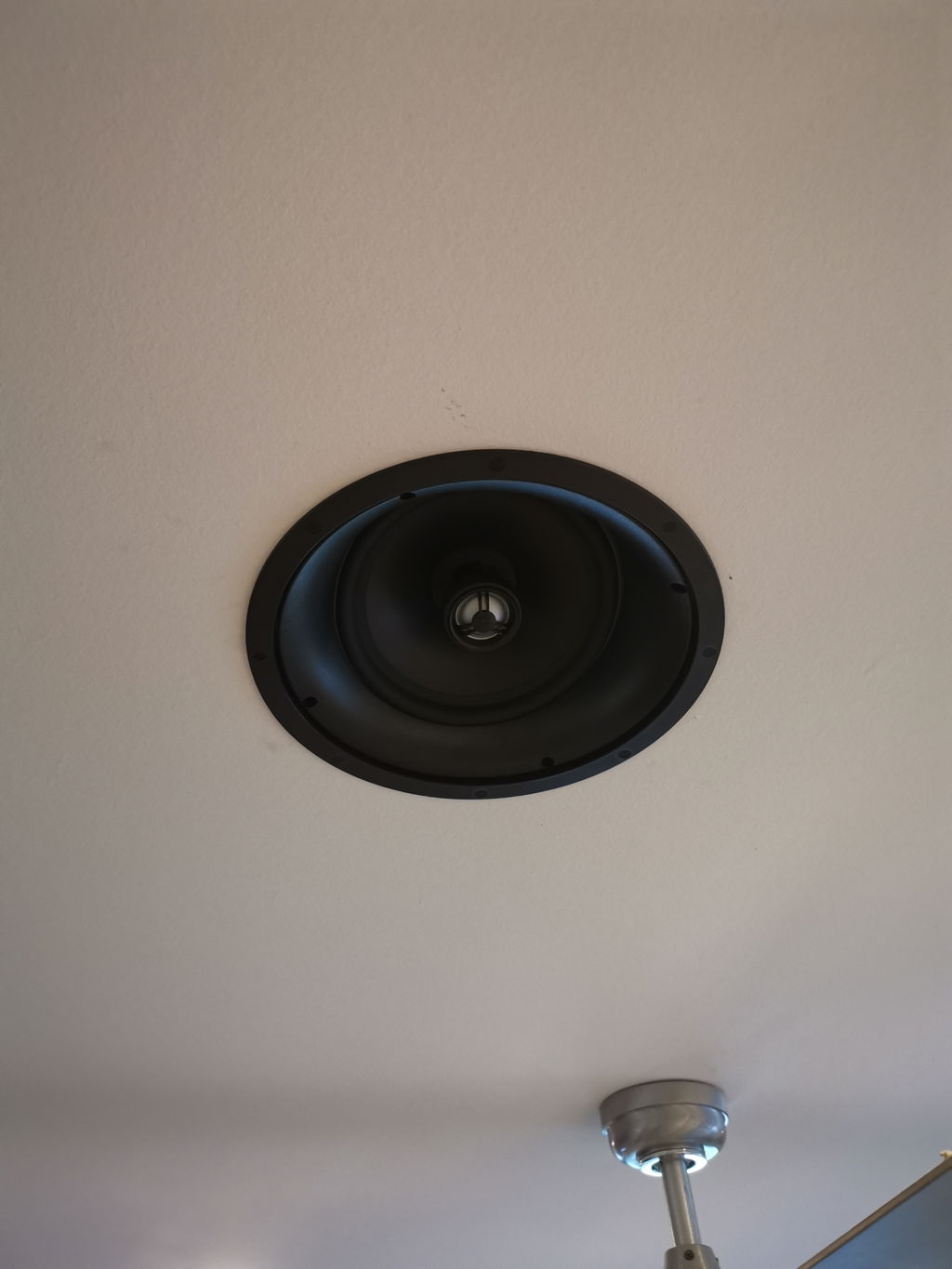

- Dispersion horn for wide sweet spot - 15 degree fixed mounting (rotatable to angle towards listening area)
- Requires 140mm (min) ceiling cavity
- Huge 2x 140 Watts RMS Power Handling
- 28mm AccuSilk Dome
- Rodent/Dust/Moisture/Humidity and weather proof (cannot be exposed to direct driving rain)
Product Comparison
Elite-404 | EHT-3 | EHT-9 | |
---|---|---|---|
Shape | Round | Round | Round |
Suited For | Ceiling | Ceiling - Indoor/Outdoor | Ceiling |
Description | 8" 2 Way | 6.5" 2 Way with dispersion Horn | 8" 2 Way |
Tweeter Size | 28mm Silk Dome | 28mm Silk Dome | 28mm Silk Dome |
Power Handling | 2x 140 WRMS | 110 Watts RMS | 2x 140 Watt RMS |
Nom. Impedance | 6 Ohms | 6 Ohms | 6 Ohms |
Frequency Resp. | 35Hz - 21kHz | 40Hz - 21kHz | 35Hz - 21kHz |
Tweeter Boost Switch | No | No | No |
Eyeball Tweeter | Yes | Yes | Yes |
Paintable Fascias | No | Yes | Yes |
Overdrive Protect | Yes | Yes | Yes |
Colors | Black/White | White | White |
Outer Dimension (Grille) | 287.5 mm | 240 mm | 290 mm |
Cut-out Dimension | 256 mm | 208 mm | 256 mm |
Warranty | 5 Years Parts & Labour | 5 Years Parts & Labour | 5 Years Parts & Labour |
SPL @ 1w/m | 90db | 90 db | 90 db |
In Ceiling Specifications
Shape | Round | Suited for | Ceiling |
Description | 8" 2 Way | Tweeter Size | 28mm Silk Dome |
Power Handling | 2x 140 WRMS | Nom. Impedance | 6 Ohms |
Frequency Resp. | 35Hz - 21kHz | Tweeter Boost Switch | No |
Eyeball Tweeter | Yes | Paintable Fascias | No |
Overdrive protect | Yes | Colors | Black/White |
Outer Dimension (Grille) | 287.5 mm | Cut-out Dimension | 256 mm |
Warranty | 5 Years P/L | SPL @ 1w/m | 90 db |
Minimum Mounting Depth | 140mm |
